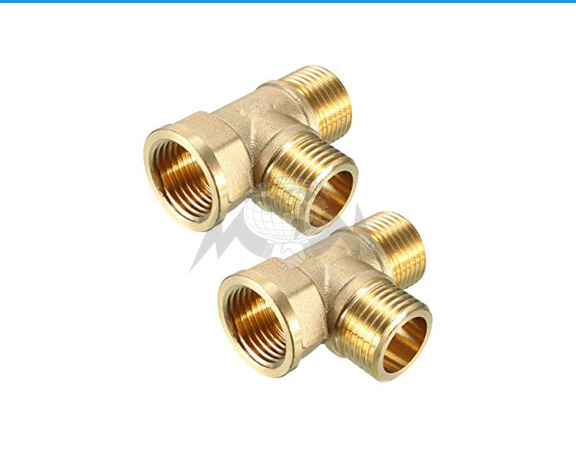

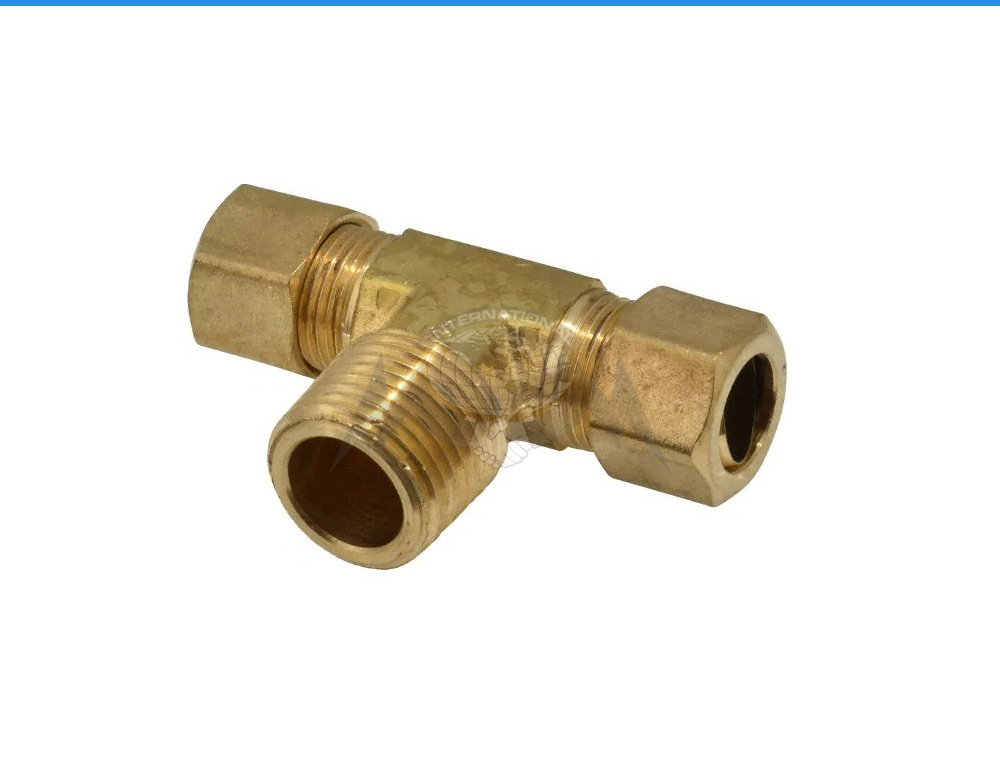

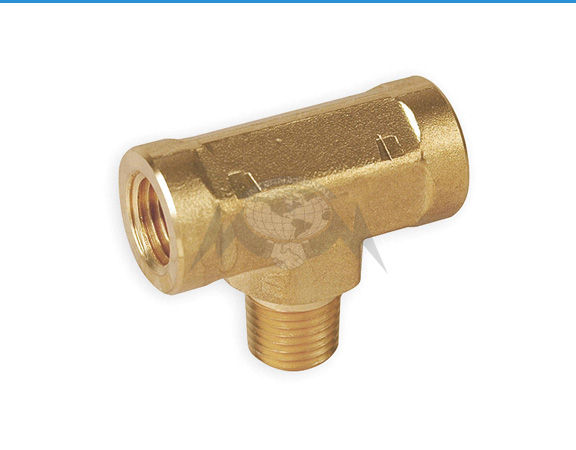

Having rich industrial experience and knowledge, we are manufacturer, exporter and supplier of top grade Brass Branch Tee. These are also known as Brass Tee Fittings, Brass T Connectors and Brass Saddle Tee. This Brass Union Branch Tee can be purchased at budget friendly rates from us. Our stock of Brass Branch Tee come under brand name “EMBROS”. The offered Brass Branch Tee Fittings are manufactured by our skilled professionals with the use of quality assured brass.
Material:
- IS-319/CZ-121 Free Cutting
- CA360 Brass for Bar stock fittings
- CA377 Brass for forged fittings
- Lead Free, DZR, Bronze, etc.
- Any special Copper alloys as per customer specifications.
Use With:
- Copper Tube
- Brass Tube
- Aluminum Tube
- Plastic Tube (with Insert)
- Not recommended for Steel tubing
Threads:
BSP, MM, NPT, UNEF, NPTF or any special threads as per customer specifications.
Pressure:
Working Pressure up to 500 PSI with a 4:1 safety factor depending on tube size.
Temperature Rating:
From -65° to +200° F
Advantages:
- Low Cost
- No Tube Flaring necessary
Typical Applications:
Instrumentation, Hydraulic and Pneumatic systems.
Finish:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue or any special finish / plating as per customer specifications.
| Code No. | SIZE |
|---|---|
| BTM 001 | 1/8 X 1/8 X 1/8 |
| BTM 002 | 1/4 X 1/8 X 1/4 |
| BTM 003 | 1/4 X 1/4 X 1/4 |
| BTM 004 | 5/16 X 1/4 X 5/16 |
| BTM 005 | 3/8 X 1/4 X 3/8 |
| BTM 006 | 3/8 X 3/8 X 3/8 |
| BTM 007 | 1/2 X 1/4 X 1/2 |
| BTM 008 | 1/2 X 3/8 X 1/2 |
| BTM 009 | 1/2 X 1/2 X 1/2 |
Website Link: Brass Branch Tee
