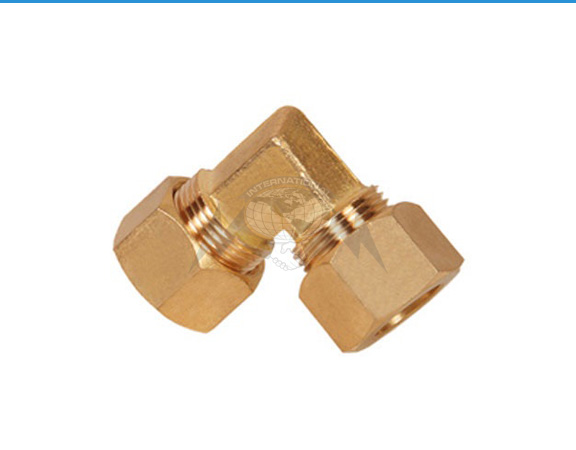

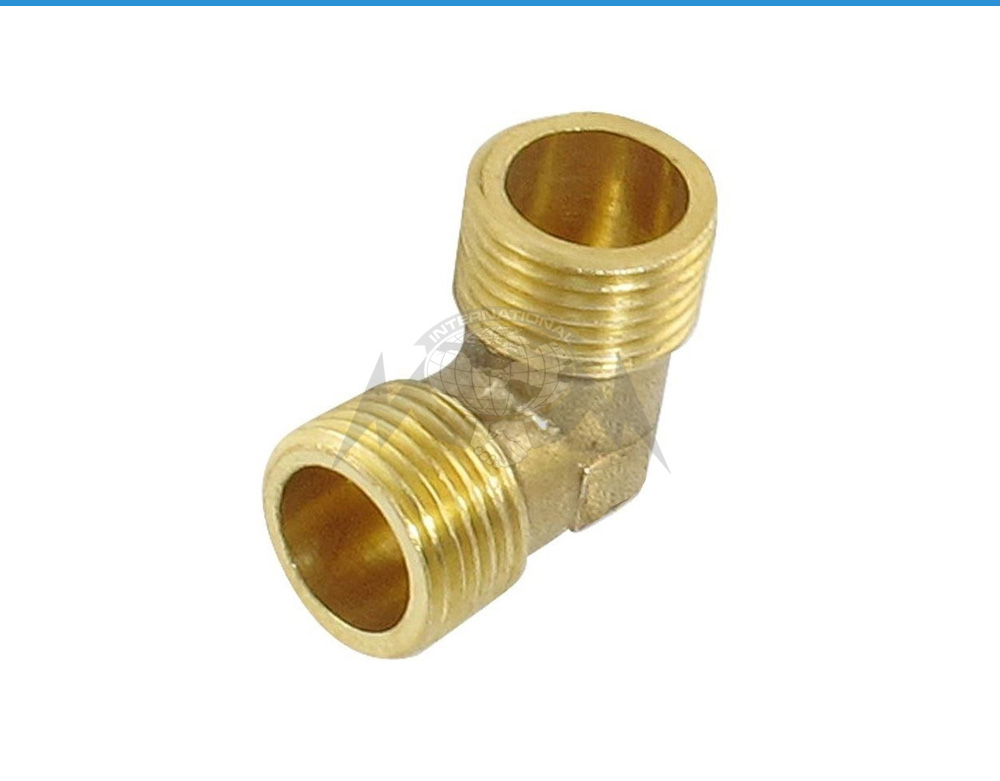

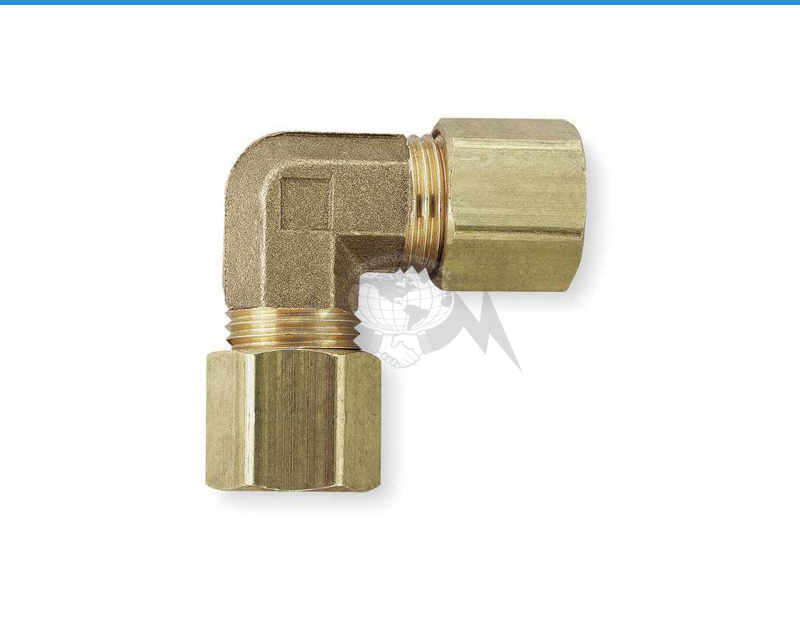

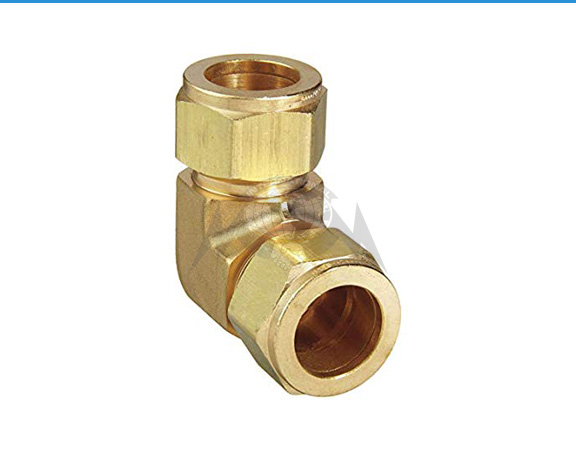

Having rich industrial experience and knowledge, we are manufacturer, exporter and supplier of top grade Brass Elbow. These are also known as Brass Compression Elbow, Brass 90 Degree Elbow and Brass Elbow Fittings. These Brass Olive Elbows can be purchased at budget friendly rates from us. Our stock of Brass Elbows come under brand name “EMBROS”. The offered Brass Union Elbow are manufactured by our skilled professionals with the use of quality assured brass.
Material:
- IS-319/CZ-121 Free Cutting
- CA360 Brass for Bar stock fittings
- CA377 Brass for forged fittings
- Lead Free, DZR, Bronze, etc.
- Any special Copper alloys as per customer specifications.
Use With:
- Copper Tube
- Brass Tube
- Aluminum Tube
- Plastic Tube (with Insert)
- Not recommended for Steel tubing
Threads:
BSP, MM, NPT, UNEF, NPTF or any special threads as per customer specifications.
Pressure:
Working Pressure up to 500 PSI with a 4:1 safety factor depending on tube size.
Temperature Rating:
From -65° to +200° F
Advantages:
- Low Cost
- No Tube Flaring necessary
Typical Applications:
Instrumentation, Hydraulic and Pneumatic systems.
Finish:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue or any special finish / plating as per customer specifications.
| Code No. | TUBE OD |
|---|---|
| OEA 001 | 1/8 |
| OEA 002 | 3/16 |
| OEA 003 | 1/4 |
| OEA 004 | 5/16 |
| OEA 005 | 3/8 |
| OEA 006 | 1/2 |
| OEA 007 | 5/8 |
| OEA 008 | 3/4 |
| OEA 009 | 1" |
| OEA 010 | 4mm |
| OEA 011 | 5mm |
| OEA 012 | 6mm |
| OEA 013 | 8mm |
| OEA 014 | 10mm |
| OEA 015 | 12mm |
| OEA 016 | 15mm |
| OEA 017 | 16mm |
| OEA 018 | 20mm |
| OEA 019 | 25mm |
