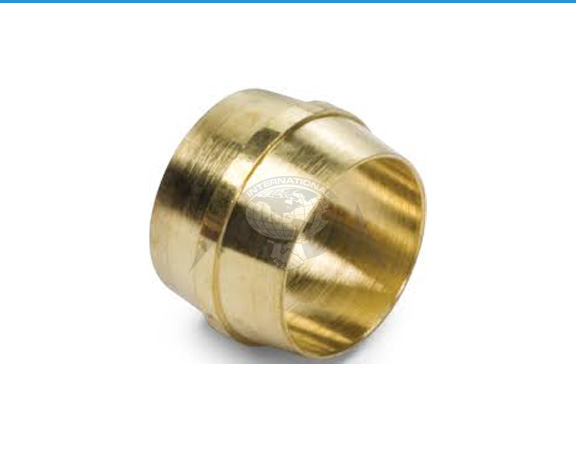

Having rich industrial experience and knowledge, we are manufacturer, exporter and supplier of top grade Brass Olive Sleeves. These are also known as Brass Compression Sleeve, Brass Ferrules and Brass Olive. These Brass Sleeves can be purchased at budget friendly rates from us. Our stock of Brass Olive Sleeve come under brand name “EMBROS”. The offered Brass Olive Sleeve are manufactured by our skilled professionals with the use of quality assured brass.
Material:
- IS-319/CZ-121 Free Cutting
- CA360 Brass for Bar stock fittings
- CA377 Brass for forged fittings
- Lead Free, DZR, Bronze, etc.
- Any special Copper alloys as per customer specifications.
Use With:
- Copper Tube
- Brass Tube
- Aluminum Tube
- Plastic Tube (with Insert)
- Not recommended for Steel tubing
Pressure:
Working Pressure up to 500 PSI with a 4:1 safety factor depending on tube size.
Temperature Rating:
From -65° to +200° F
Advantages:
- Low Cost
- No Tube Flaring necessary
Typical Applications:
Instrumentation, Hydraulic and Pneumatic systems.
Finish:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue or any special finish / plating as per customer specifications.
| Code No. | SIZE |
|---|---|
| BOO 001 | 1/8 |
| BOO 002 | 3/16 |
| BOO 003 | 1/4 |
| BOO 004 | 5/16 |
| BOO 005 | 3/8 |
| BOO 006 | 1/2 |
| BOO 007 | 5/8 |
| BOO 008 | 3/4 |
| BOO 009 | 1" |
| BOO 010 | 4mm |
| BOO 011 | 5mm |
| BOO 012 | 6mm |
| BOO 013 | 8mm |
| BOO 014 | 10mm |
| BOO 015 | 12mm |
| BOO 016 | 15mm |
| BOO 017 | 16mm |
| BOO 018 | 18mm |
| BOO 019 | 20mm |
| BOO 020 | 22mm |
| BOO 021 | 25mm |
