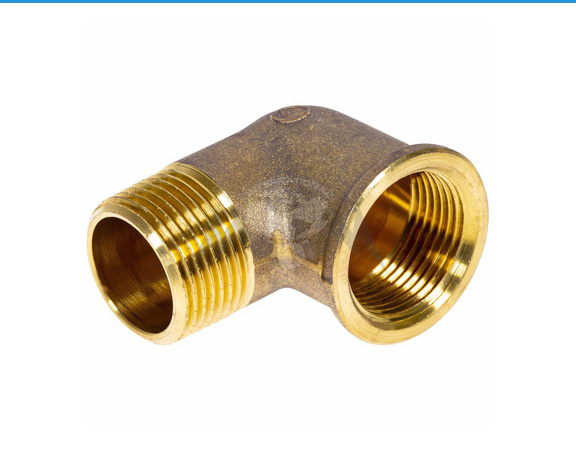

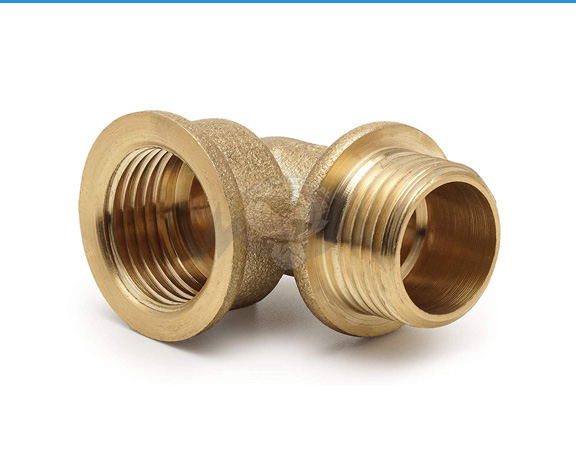

Having rich industrial experience and knowledge, we are manufacturer, exporter and supplier of top grade Brass Male Female Elbows. These are also known as Brass Pipe Bar stock Male Female Elbow, Compression Male Female Elbow and 90 Degree Male to Female Elbow. This Brass Male Female Elbow can be purchased at budget friendly rates from us. Our stock of Brass Male Female Elbow come under brand name “EMBROS”. The offered Brass Male Female Elbows are manufactured by our skilled professionals with the use of quality assured brass.
Material:
- IS-319/CZ-121 Free Cutting
- CA360 Brass for Bar stock fittings
- CA377 Brass for forged fittings
- Lead Free, DZR, Bronze, etc.
- Any special Copper alloys as per customer specifications.
Use With:
- Copper Tube
- Brass Tube
- Aluminum Tube
- Plastic Tube (with Insert)
- Not recommended for Steel tubing
Threads:
BSP, MM, NPT, UNEF, NPTF, UNC, BSW, UNF or any special threads as per customer specifications.
Pressure:
Working Pressure up to 500 PSI with a 4:1 safety factor depending on tube size.
Temperature Rating:
From -65° to +200° F
Advantages:
- Low Cost
- No Tube Flaring necessary
Typical Applications:
Instrumentation, Hydraulic and Pneumatic systems.
Finish:
Brass Natural, Electro Tinned, Nickel, Chrome, Led, Silver, Gold, Zinc Blue or any special finish / plating as per customer specifications.
| Code No. | TUBE OD |
|---|---|
| EMF 001 | 1/8 X 1/8 |
| EMF 002 | 1/8 X 1/4 |
| EMF 003 | 1/8 X 3/8 |
| EMF 004 | 1/4 X 1/8 |
| EMF 005 | 1/4 X 1/4 |
| EMF 006 | 1/4 X 3/8 |
| EMF 007 | 3/8 X 1/4 |
| EMF 008 | 3/8 X 3/8 |
| EMF 009 | 3/8 X 1/2 |
| EMF 010 | 1/2 X 1/4 |
| EMF 011 | 1/2 X 3/8 |
| EMF 012 | 1/2 X 1/2 |
| EMF 013 | 3/4 X 3/8 |
| EMF 014 | 3/4 X 1/2 |
| EMF 015 | 3/4 X 3/4 |
| EMF 016 | 1 X 3/4 |
| EMF 017 | 1 X 1 |
